Current Monitor Probes
F-251007-1005-3 In-Line
Current Monitor Probes

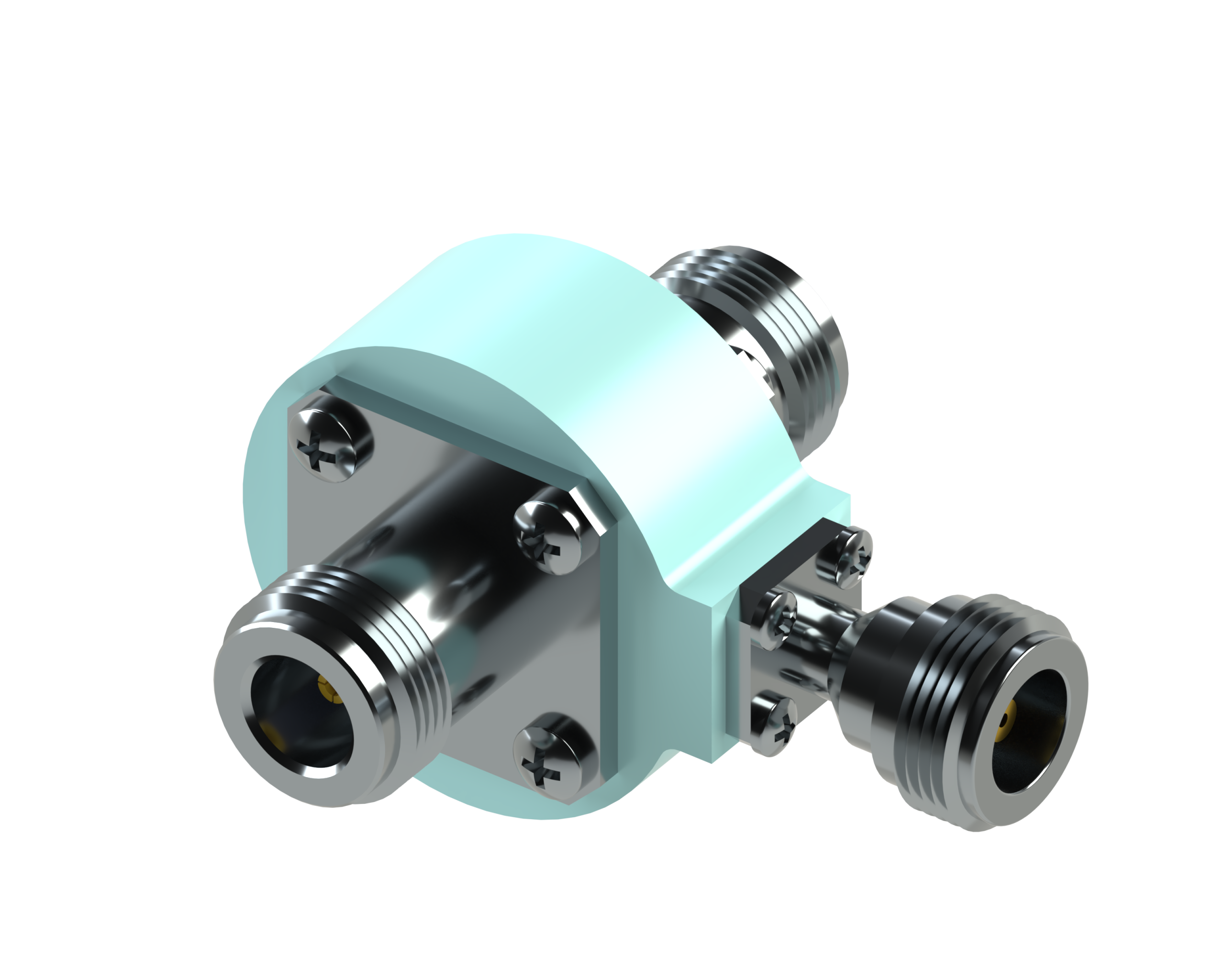

F-251007-1005-3 In-Line
The F-251007-1005-3 is used to measure common mode currents from 10 kHz – 250 MHz inside a 50 W coaxial cable.
To View Performance Graphs And Data Sheet
LoginProduct Specifications
Product |
Frequency |
dBΩ (nominal) |
ZtΩ (nominal) |
Connector |
Inner Diameter (mm.) |
Outer Diameter (mm.) |
Height (mm.) |
Max Primary Current DC-400Hz |
CW current (amperes) |
Peak Pulse Current |
Calibration Fixture |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F-251007-1005-3 In-Line | 10 kHz - 250 MHz | 14 | 5 | Type-N | - | 27 | 53 | - | 5 | - | - |
