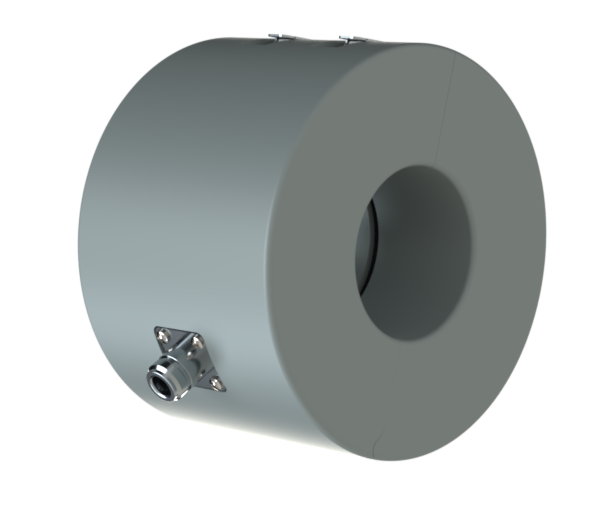

The F-260608-1008-1 is a broadband, high efficiency injection probe. Large RF currents can be coupled on to a signal or power circuit under test between 150 kHz – 230 MHz. Device can be used for IEC61000-4-6 testing.

Product Specifications

Product Name
Usable Frequency
Rated Watts (CW)
Inner Diameter (mm)
Outer Diameter (mm)
Height (mm)
Calibration Fixture
Standards
F-260608-1008-1 150 kHz - 230 MHz 550 64 153 102 FCC-BCICF-6-150-4 IEC61000-4-6
Product specifications are subject to change without notice
×
