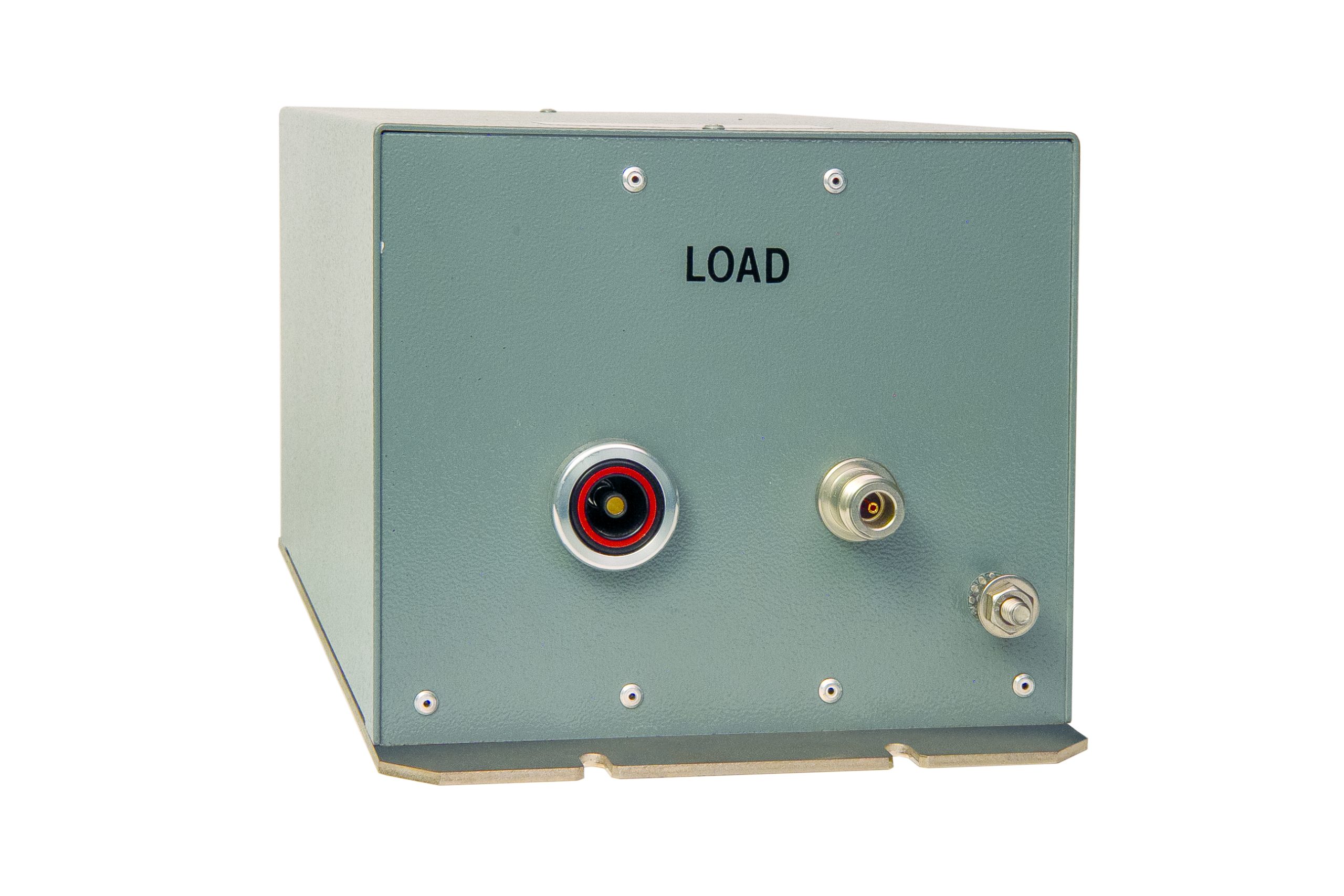

The FCC-LISN-5-200-1-(XX)-DO-160G has been designed for testing electronic equipment in accord with RTCA DO-160G requirements. DO-160G has particularly unique voltage requirements related to power circuitry in the next generation of aircraft. Power can range from DC – 800 Hz, 230 V. The LISN must be rated for this range of voltage vs frequency for avionics electronics to be tested in accordance with DO-160 Rev G.

Product Specifications

Product
Maximum Current (amps)
Inductance
Number of Lines
Frequency
Maximum DC Voltage
Maximum Voltage at 50/60 Hz
Maxim Voltage at 400 Hz
Maximum Voltage at 800 Hz
FCC-LISN-5-200-1-(XX)-DO-160G 200 5 µH 1 10 kHz - 400 MHz 1000 VDC 480 VAC - 230 VAC
Product specifications are subject to change without notice
×
