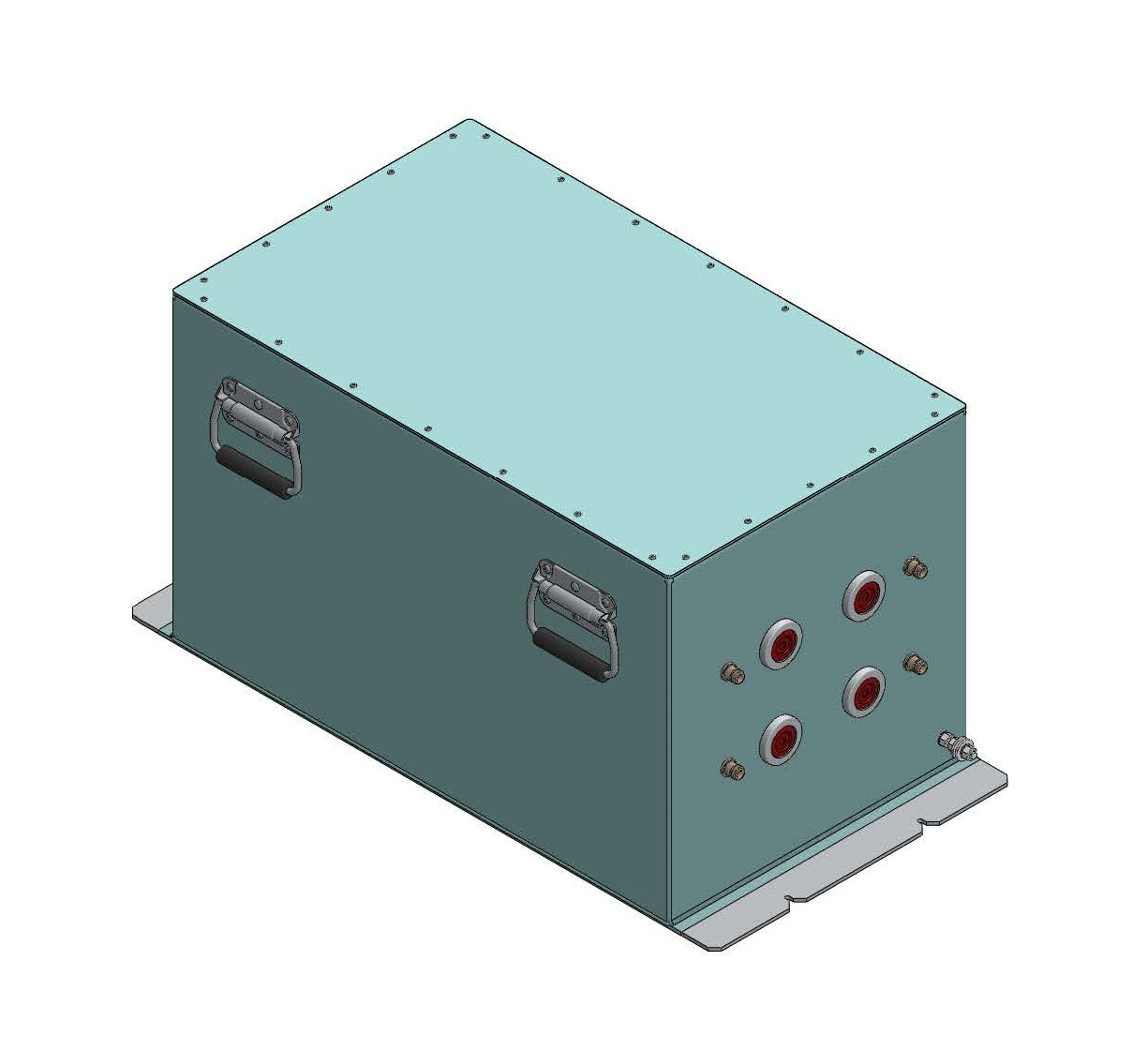

The FCC-LISN-50-100-(X)-(XX)-MS461G is a hi-pass network used to couple conducted emissions from the EUT power line terminal to a RF monitoring detector. It is constructed using air core inductors. This ensures linearity of the inductor with varying load current. The linearity of the inductors ensures that the LISN will accurately measure RF emission levels under all power mains current magnitudes.

Product Specifications

Product
Maximum Current (amps)
Inductance
Number of Lines
Frequency
Maximum DC Voltage
Maximum Voltage at 50/60 Hz
Maxim Voltage at 400 Hz
Maximum Voltage at 800 Hz
FCC-LISN-50-100-(X)-(XX)-MS461G 100 50 µH 1, 2, or 4 150 kHz to 10 MHz 1000 VDC 480 VAC 130 VAC -
Product specifications are subject to change without notice
×
